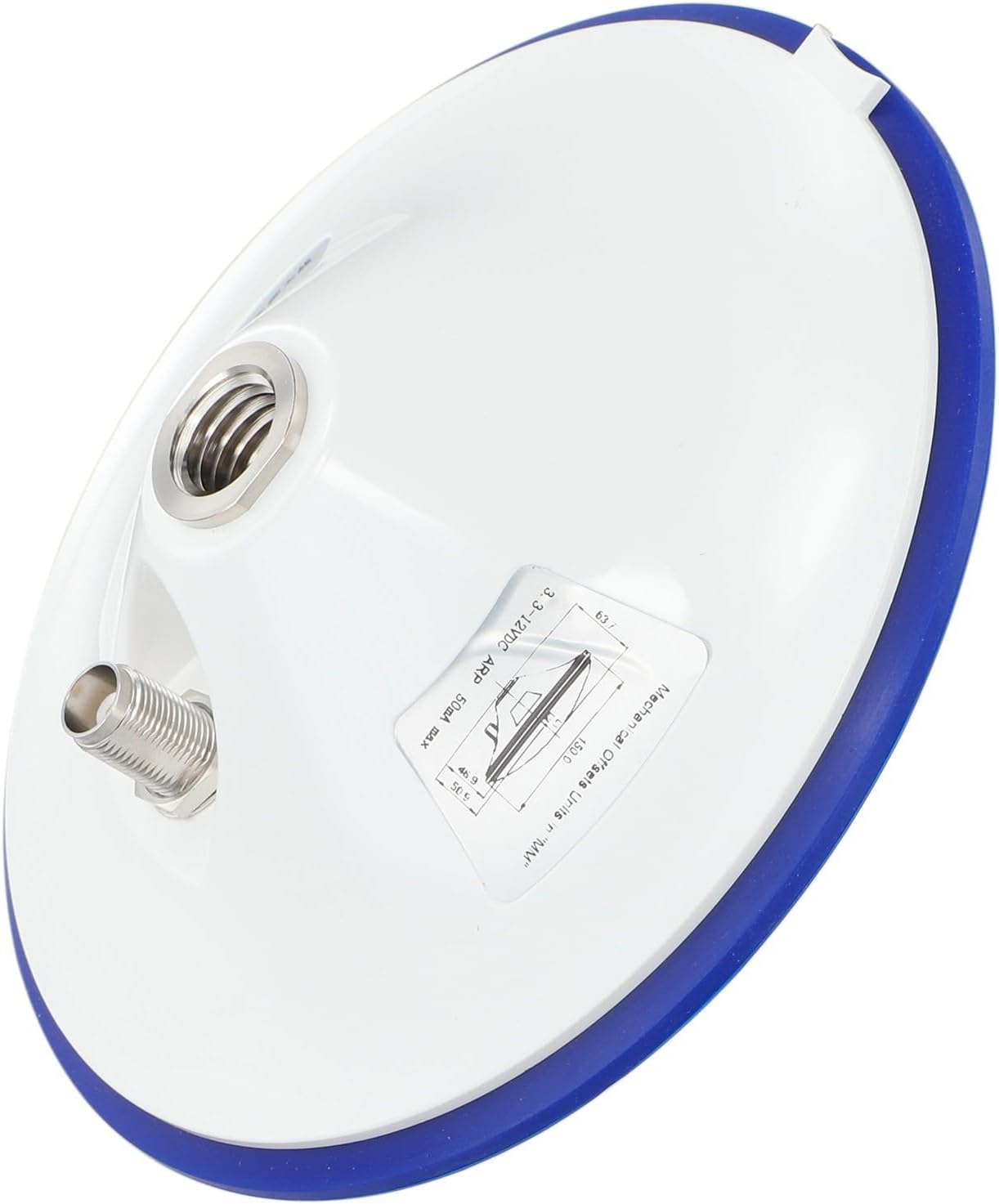

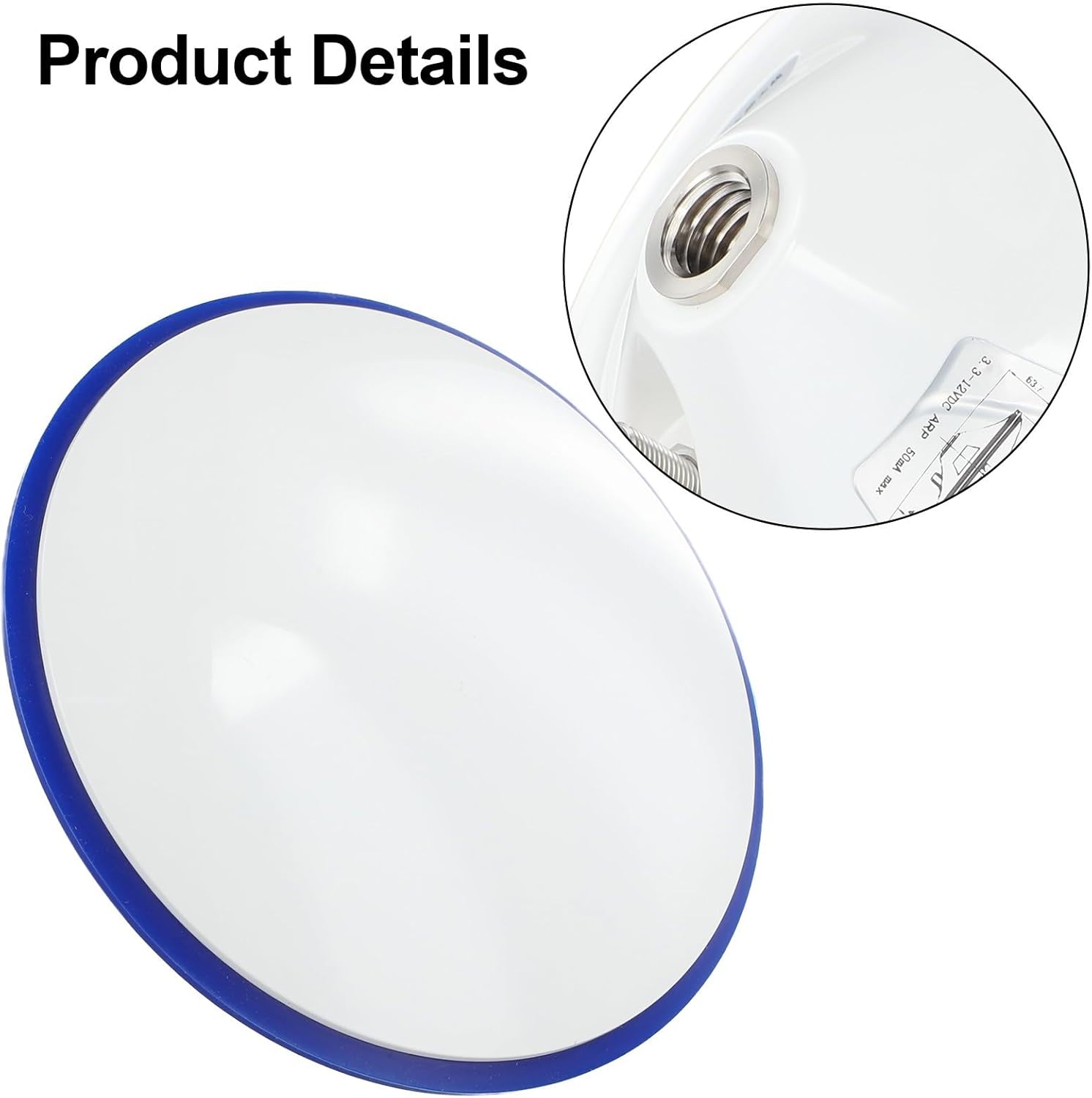

Multi-Band GNSS GPS Antenna with High Gain and Wide Beam Compatible with AG15 AG25 AG35 Supports GPS L1/L2 GLONASS G1/G2 BeiDou B1/B2/B3 for Galileo E1/E5b for Precision Surveying

Features:Experience accurate positioning with this multi-band GNSS GPS antenna, compatible with AG15, AG25, and AG35, and supporting GPS L1/L2, GLONASS G1/G2, BeiDou B1/B2/B3, and E1/E5b. Engineered for reliable performance, it is crafted to meet various surveying needs in automation, geodesy, road building, port container operations, and more.The advanced multi-feed point design ensures the phase center is precisely aligned with the geometric center, which reduces measurement errors and enhances positioning accuracy applications.Enjoy robust signal reception even under low and obstructed environments, thanks to the antenna’s strong gain and wide beam coverage, allowing for consistent tracking in challenging field conditions.Constructed with a tough ABS housing and rated IPX67 for weather resistance, this antenna stands up to both high and low temperatures, delivering ongoing protection for outdoor, long-term use.Specification:Part Name: GNSS AntennaMaterial: ABS, metalColor: As shown in the pictureOperating frequencies: GPSL1/L2, BeiDouB1/B2/B3, GLONASSG1/G2, E1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage Angle: 360°Output standing wave ratio: ≤1.5Antenna AR: ≤3dBPhase center error: ≤2mmLow-noise specificationsgain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Operating voltage: +3V to +15VWorking current: ≤45mAConnector: TNC-KAntenna size (mm): Ф150×63.7Weight (g): 380gOperating environmentOperating temperature (℃): -40℃ to +70℃Storage temperature (℃): -55℃ to +85℃Rating: IPX67Package content:1 x GNSS antenna

• [MULTI-BAND GNSS ANTENNA] This GNSS antenna supports four major global navigation systems GPS, GLONASS, BDS, and , ensuring reliable signal reception for all your surveying and mapping needs.
• [DESIGNED FOR ACCURACY] With a multi-feed point design, the antenna minimizes measurement errors by aligning the phase center with the geometric center, providing enhanced accuracy in various applications.
• [ AND WEATHER-RESISTANT] Constructed with a robust ABS housing and waterproof design (IPX67), this antenna is built to withstand harsh outdoor conditions, extending its service life significantly.
• [WIDE SIGNAL RECEPTION] The antenna features a wide beam pattern and good low gain, allowing it to receive signals even in challenging environments with severe obstructions.
• [WIDE APPLICATIONS] for automated agriculture, geodesy, road construction, and port operations, this antenna is a solution for professionals in various fields.
